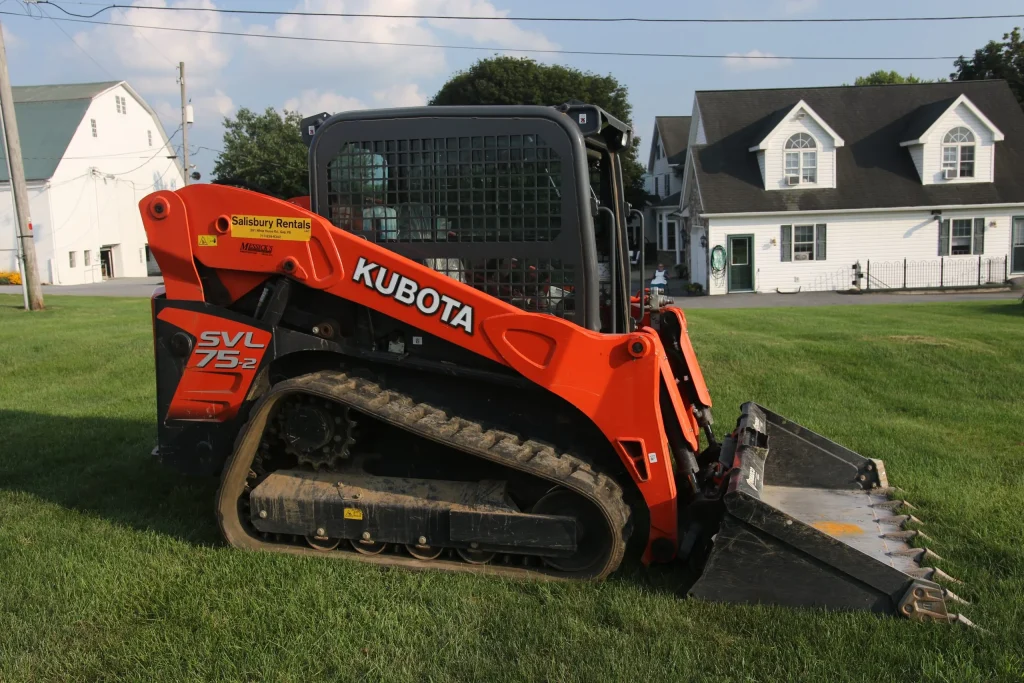

The Kubota SVL–75–2 is a powerful, reliable, and versatile compact track loader, perfect for tackling tough jobs on construction sites, farms, or landscaping projects. Designed with efficiency and comfort in mind, this machine delivers the performance you need to get the job done right.
Manufacturer: Kubota
Model: SVL-75-2 (Compact Track Loader, Vertical Lift)
Production Years: 2014–2025
Horsepower: 74.3 HP (55.4 kW), Net 68.8 HP (51.3 kW)
Rated Lifting Capacity (35% tipping load): 2,300 lb (1,043 kg)
Rated Lifting Capacity (50% tipping load): 3,285 lb (1,490 kg)
Tipping Load: 6,570 lb (2,980 kg)
Lift Breakout Force: 4,770 lb (2,163 kg)
Tilt Breakout Force: 6,200 lb (2,812 kg)
Max Travel Speed: 7.1 mph (11.5 km/h)
Ground Pressure: 5.8 psi (40 kPa)
Standard Pump Flow: 17.4 GPM (66 LPM)
Optional High-Flow Pump: 29.3 GPM (110.9 LPM)
Relief Pressure: 3,250 psi (224 bar)
Hydraulic Capacity: 9.2 gal (35 L)
Engine: Kubota V3307-CR-TE4, Tier 4 diesel, 4 cylinders, 2,400 RPM
Gross Power: 74.3 HP (55.4 kW)
Net Power: 68.8 HP (51.3 kW)
Displacement: 203.3 cu in (3,331 cc), Bore-Stroke: 3.7 in × 4.7 in
Fuel Tank: 24.6 gal (93 L)
Operating Weight: ≈9,300 lb (4,218 kg)
Height: 82.0 in (2,083 mm)
Length: 140.8 in (3,576 mm)
Width: 65.9 in (1,675 mm)
Dump Reach: 41.7 in (1,060 mm), Hinge Pin Height: 119.1 in (3,025 mm)
Ground Clearance: 11.7 in (296 mm)
Track Width & Length: 12.6 in × 109 in (320 mm × 2,768 mm), Ground Contact Length: 56.5 in (1,436 mm)
